• LT245/75R16E all-season BSW tires
• No spare tire & wheel
• Single rear wheels
• 16" x 7" steel wheels
• Painted black front bumper w/lower black plastic valence
• Sealed beam headlights
• Solar tinted glass
• Interval windshield wipers

• Electronic AM/FM stereo -inc: digital clock, aux input jack & (2) speakers

• Dual high back bucket seats -inc: inboard armrests (REQ: A_ Vinyl or C_ Cloth Trim)
• Medium Flint, Vinyl seat trim (REQ: 211 or 21B Seats)
• Black vinyl floor covering
• Tilt steering wheel
• Medium Flint-color instrument panel -inc: double 12-volt pwr point, tachometer
• Key in ignition warning chime
• Front air conditioning
• Dash sound absorber
• Glove box w/auxiliary pwr point
• Rearview mirror delete
• Medium flint-color door trim panels w/single stowage area
• Driver & passenger black cowl trim panels
• Front vinyl-faced molded headliner
• Dual color-keyed vinyl sunvisors
• Light & convenience group
• Front dome light
• Front door courtesy light switches
• Black plastic step well pads
• Color-keyed cowl grab handles

• 4-wheel anti-lock brakes (ABS)
• Driver & front passenger 2nd generation air bags
• Medium flint-color seat belts w/height adjustable D-ring
• Tire pressure monitoring system (TPMS)
• Dual note horn

5.4L EFI TRITON V8 FFV ENGINE

• (STD)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 120
• Maximum Alternator Watts: 1620
• Cooling System
• Total Cooling System Capacity (qts): 28.3
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4050
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 2814
• Curb Weight - Rear (lbs): 1968
• Gross Vehicle Weight Rating Cap (lbs): 10050
• Gross Combined Wt Rating (lbs): 13000
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 1-Stage Multi-Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 0.91
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6 x 0.49
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.35
• Tires
• Front Tire Order Code: T38
• Rear Tire Order Code: T38
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 3042
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: 677
• Revolutions/Mile @ 45 mph - Rear: 677
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: 17.0
• Turning Diameter - Curb to Curb (ft): 48.6
• Turning Diameter - Wall to Wall (ft): 50.0
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Fuel Tank Location: Aft Of Rear Axle
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/o rear bumper (in): 241.1
• Width, Max w/o mirrors (in): 79.4
• Overhang, Front (in): 30.0
• Overhang, Rear w/o bumper (in): 68.5
• Ground to Top of Frame (in): 20.9
• Frame Width, Rear (in): 42.0
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42.0
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Summary

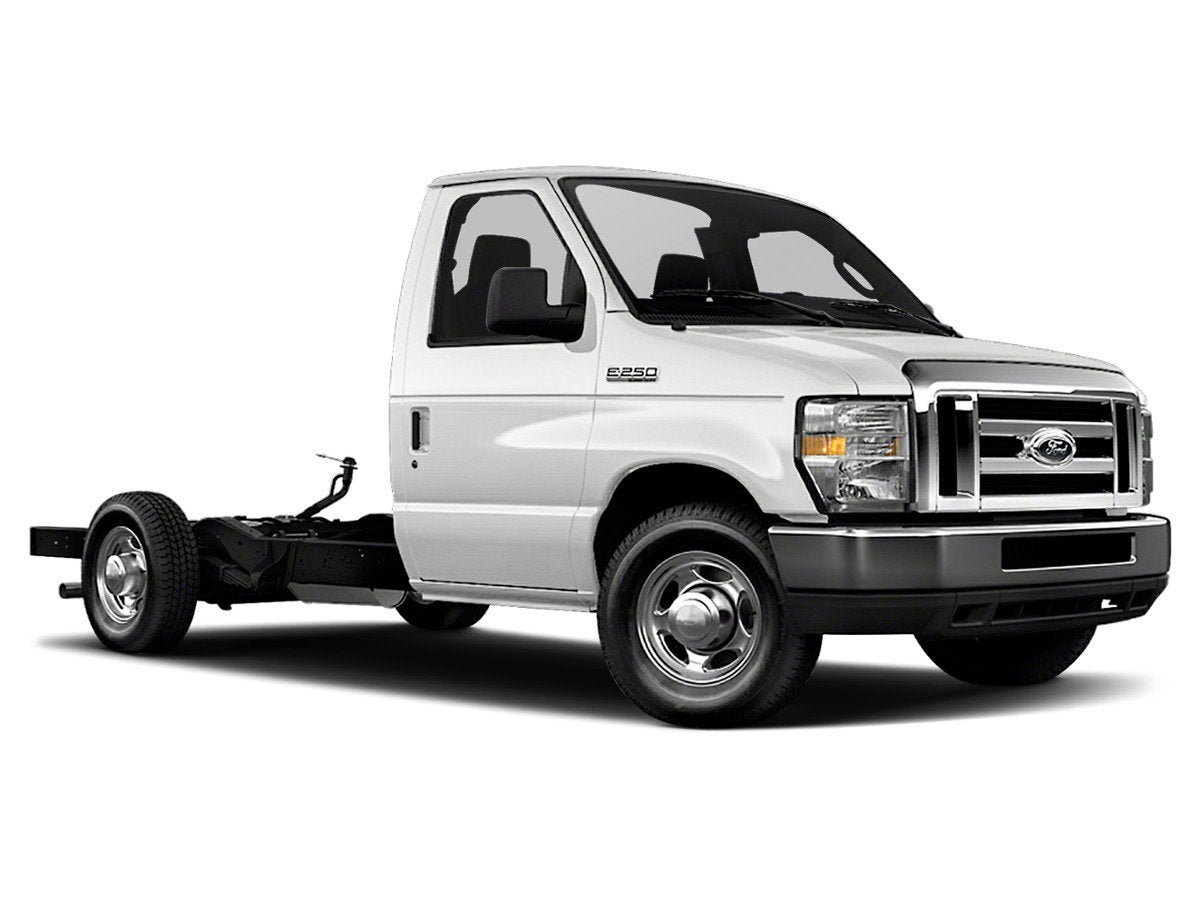

• Vehicle Name: Ford Econoline Commercial Cutaway
• Body Style: Chassis Cab
