• Solid exterior paint
• Chrome front bumper
• Painted rear step bumper
• Dark argent air dam
• Molded grille painted argent
• Single rectangular halogen headlamps
• Daytime running lamps
• Cargo area lamp
• Dual black break-a-way mirrors
• Solar-Ray tinted glass (all windows)
• Swing-out rear quarter windows
• Intermittent windshield wiper system
• Cheyenne badge on B-pillar
• Removable tailgate w/badge name/decal
• Insulation under dash & floor covering

• 3-passenger reclining split bench seat w/easy entry feature
• 3-passenger folding rear bench seat w/matching trim
• Scotchgard Fabric Protector on all cloth & carpet surfaces
• Color-keyed rubber floor covering
• Simulated leather steering wheel
• Passlock theft deterrent security system
• Key-in-ignition warning buzzer
• Heater/defogger w/side window defoggers
• ETR AM/FM stereo-inc: seek-scan, digital clock, 4 speakers
• Glove box w/latched door
• Dual dash cupholders
• Dual covered power points
• Cigarette lighter
• Molded plastic door trim panels w/dual integral armrests/map pockets
• Color-keyed cloth headliner
• Dual color-keyed padded cloth sunshades w/driver storage strap, passenger mirror
• Passenger assist handles
• Lighting-inc: dome,reading,ashtray,glove-box,delayed entry feature,underhood
• Dual coat hooks

• Four-wheel anti-lock brake system
• Driver & front passenger air bag w/passenger suppression switch on instrument panel
• Manual lap/shoulder safety belts, front/rear outboard seat positions
• Front outboard shoulder belt height adjusters
• Manual lap safety belts, center seat positions
• Energy-absorbing steering column/instrument panel
• Head restraints, front seat
• Daytime running lamps
• Side door guard beams
• Single note horn

UPFITTER PREFERRED EQUIPMENT GROUP 1

• Silverado decor
• air cond
• ETR AM/FM stereo w/cassette
• tilt wheel
• speed control
• upfitter pkg
• temporary front seat *Available to C.Q.A.C.P. Manufacturers Only*

SOLAR-RAY DEEP TINTED GLASS

• *rear window is light tinted w/C49 Defogger*

BLACK BODY-SIDE MOLDING W/BRIGHT TRIM

• bright wheel opening molding

EASY ACCESS 3RD DOOR

• passenger side door hinged to rear of cab for access to rear seating area
• assist handle

REAR BUMPER DELETE

• *Deletes std bumper* (Vehicles registered in certain states MUST have a rear bumper to be operated on their roads. Consult your local laws)

4-SPEED ELECTRONICALLY-CONTROLLED AUTOMATIC TRANSMISSION W/OD

• trans oil cooler
• brake/trans shift interlock

6200# GVWR

• (3500 front/3686 rear)
• springs (3500 front/3750 rear)
• axles (3600 front/ 3750 rear) (STD)

ETR AM/FM STEREO W/COMPACT DISC, CASSETTE, AUTO TONE CONTROL

• seek-scan
• cassette search/repeat
• digital clock
• theft lock
• speed compensated volume
• enhanced performance speaker system

APPEARANCE PKG

• chrome grille
• dual composite halogen headlamps
• dual horns

UPFITTER PKG

• incomplete vehicle certification *Available to C.Q.A.C.P. Manufacturers Only*

CONVENIENCE GROUP

• tilt wheel
• speed control

SOLID PAINT

• (STD)

• SEAT BELT PROVISIONS FOR BENCH SEAT

  PWR DOOR LOCKS

  FRONT FLOOR MATS

  REAR FLOOR MATS

  AIR CONDITIONING

  FEDERAL EMISSIONS

  3.42 AXLE RATIO

  5.7L (350) SFI V8 (VORTEC) ENGINE

  (4) CAST ALUMINUM 15" x 7" WHEELS

  MULTIPLE ORDER ACKNOWLEDGEMENT

  DELUXE CHROMED FRONT BUMPER W/RUB STRIP

  FRONT LICENSE PLATE BRACKET

  TEMPORARY FRONT SEATING

  P235/75R15 ALL-SEASON SBR RWL FRONT TIRES

  P235/75R15 ALL-SEASON SBR RWL REAR TIRES

  P235/75R15 ALL-SEASON SBR RWL SPARE TIRE

• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 100
• Maximum Alternator Watts: 1200
• Cooling System
• Total Cooling System Capacity (qts): 17.2
• Total Cooling System Capacity (qts): 12.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3500
• Gross Axle Wt Rating - Rear (lbs): 3686
• Curb Weight - Front (lbs): 2454
• Curb Weight - Rear (lbs): 1690
• Gross Vehicle Weight Rating Cap (lbs): 6200
• Gross Combined Wt Rating (lbs): 10,000
• Gross Combined Wt Rating (lbs): 7000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3500
• Spring Capacity - Rear (lbs): 3750
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 3750
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 25
• Shock Absorber Diameter - Rear (mm): 25
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Power
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.57 x 1.25
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 10.0 x 2.25
• Tires
• Front Tire Order Code: XFL
• Rear Tire Order Code: YFL
• Spare Tire Order Code: ZFL
• Front Tire Size: P235/75R15
• Rear Tire Size: P235/75R15
• Spare Tire Size: P235/75R15
• Front Tire Capacity (lbs): 1843
• Rear Tire Capacity (lbs): 1843
• Spare Tire Capacity (lbs): 1843
• Revolutions/Mile @ 45 mph - Front: 722
• Revolutions/Mile @ 45 mph - Rear: 722
• Revolutions/Mile @ 45 mph - Spare: 722
• Wheels
• Front Wheel Size (in): 15 x 7
• Rear Wheel Size (in): 15 x 7
• Spare Wheel Size (in): 15 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 16.5
• Steering Ratio (:1), At Lock: 15.6
• Turning Diameter - Curb to Curb (ft): 46.6
• Turning Diameter - Wall to Wall (ft): 50.9
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25
• Fuel Tank Location: Inboard LH Frame
• Exterior Dimensions
• Wheelbase (in): 141.5
• Length, Overall w/o rear bumper (in): 218.5
• Width, Max w/o mirrors (in): 76.8
• Height, Overall (in): 70.6
• Overhang, Front (in): 35.4
• Overhang, Rear w/o bumper (in): 41.6
• Front Bumper to Back of Cab (in): 135.0
• Cab to Axle (in): 41.9
• Ground to Top of Load Floor (in): 31.4
• Frame Width, Rear (in): 36.7
• Ground Clearance, Front (in): 6.9
• Ground Clearance, Rear (in): 6.9
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 60.2
• Cargo Box Width @ Floor (in): 64.4
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 19.2
• Tailgate Width (in): 62.0
• Cargo Volume (ft³): 55.6
• Ext'd Cab Cargo Volume (ft³): 40.5
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 39.9
• Front Leg Room (in): 41.7
• Front Shoulder Room (in): 65.4
• Front Hip Room (in): 60.0
• Second Head Room (in): 37.5
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 67.6
• Second Hip Room (in): 64.2
• Summary

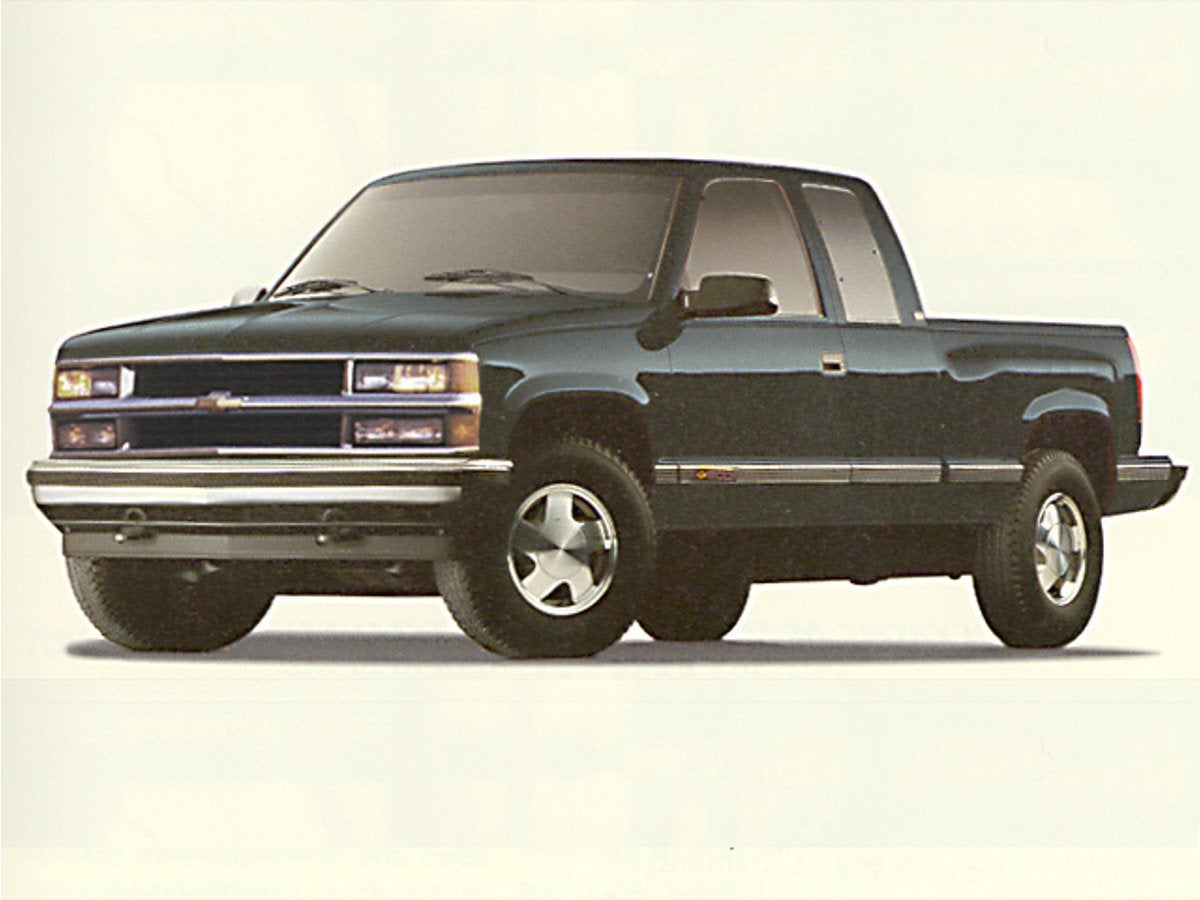

• Vehicle Name: Chevrolet C/K 1500
• Body Style: Ext Cab 6.5' Fleetside
• Body Code: E63
